Description：

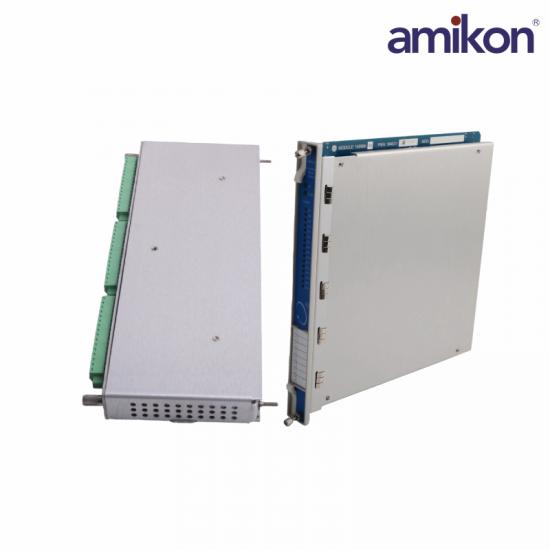

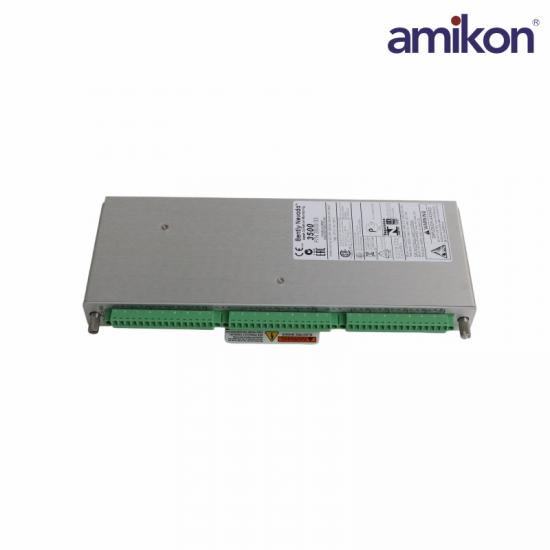

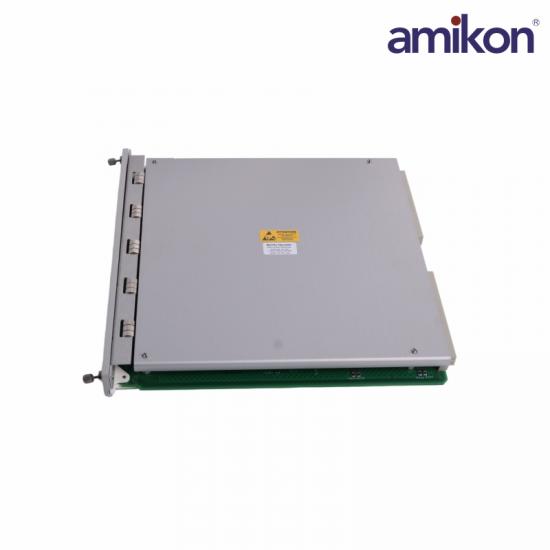

The Bently Nevada 3500/33 (149986-01 + 149992-01) is a 16-channel relay module designed for the 3500 Machinery Protection System. It includes a 149986-01 relay control module and a 149992-01 relay output module, offering 16 programmable SPDT relay outputs for alarm signaling and control.
The Bently NevadaTM 3500/33 16-Channel Relay Module is afull-height module that provides 16 relay outputs. You canplace any number of 16-channel relay modules in any of theslots to the right of the Transient Data Interface (TDl) Module.
Each output of the 3500/33 16-Channel Relay Module can beindependently programmed to perform voting logic.
Specification：
|
Manufacturer |
Bently Nevada |
|
Part Number |
3500/33 149986-01+149992-01 |
|
Product Type |
16-Channel Relay Module |
|
Typical Power Consumption |
5.8 watts |
|
Relay Arc Suppressor |
250 Vrms, installed as standard |
|
Relay Contact Life |
10,000 cycles |
|
Minimum Switched Current |
100 mA @ 5 Vdc |
|
DC Specifications (Resistive Load) |
|
|
Maximum Switched Current |
5 A |
|
Maximum Switched Power |
70 W @ 24 Vdc |
|
10 W @ 48 Vdc |
|
|
9 W @ 60 Vdc |
|
|
Maximum Switched Voltage |
125 Vdc |
|
AC Specifications |
|
|
Maximum Switched Current |
5 A |
|
Maximum Switched Power |
1200 VA |
|
Maximum Switched Voltage |
250 Vac |
Frequently asked questions
Q1: What is the Bently Nevada 3500/33 16-Channel Relay Module?
A1: It is a relay output module used in the 3500 monitoring system to provide multiple alarm and control outputs based on machinery condition data.
Q2: How many channels does this 3500/33 149986-01 module support?
A2: The 3500/33 149986-01 module provides 16 relay channels, enabling flexible control and alarm signaling.
Q3: What is the relay contact life?
A3: The relay contacts are rated for approximately 10,000 cycles under standard operating conditions.
Q4: What is the 3500/33 minimum switched current?
A4: The 3500/33 minimum switched current is 100 mA at 5 V DC, ensuring reliable contact operation under load.
Q5: What is the 3500/33 typical power consumption?
A5: The 3500/33 module consumes approximately 5.8 watts during operation.
Product Applications
Oil and Gas (Petrochemical): Compressor units, pumps, industrial fans, steam turbines, and gearboxes for oil refineries and natural gas processing plants.
Power Generation: Steam turbines, generators, coal mills, feedwater pumps, and forced draft/induced draft fans for power plants.
Metallurgy and Iron & Steel: Blast furnace blowers, oxygen compressors, air compressors, and speed reducers for steel plants.
Water Treatment and Papermaking: Large industrial water pumps and large pump sets.
