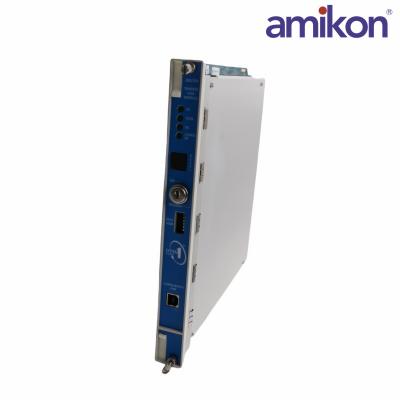

The Bently Nevada 3500/22M 288055-01+146031-01 Transient Data Interface (TDI) is part of the 3500 Series Machinery Protection and Monitoring System, designed to provide high-performance monitoring and protection for critical industrial machinery.

The 3500/22M 288055-01+146031-01 module specifically focuses on capturing and analyzing transient events—short-duration, high-energy occurrences that can be indicative of machinery problems such as shock, imbalance, or other operational anomalies. These events can sometimes be too brief to be detected by traditional monitoring systems, making the TDI a valuable tool for predictive maintenance and early fault detection.

Model Number: 3500/22M 288055-01+146031-01

Type: Transient Data Interface (TDI) Module

Part of the Bently Nevada 3500 Series: Machinery Protection and Condition Monitoring System

Operating Frequency:20 kHz

Input Voltage:AC 110V / 220V

Output Voltage:DC 12V / 24V

Current Rating:10A / 20A

Operating Temperature Range:-40°C to +70°C

Communication Interface:RS485, Modbus

Load Capacity:Up to 250 Ohms

3500/22M 288055-01+146031-01 Includes 256MB Flash Memory and 512KB RAM for efficient data logging.

IP20 protection, ensuring protection against dust and physical contact with the module but not sealed against water ingress. Typically used in controlled environments such as control rooms, panel enclosures, or other protected areas.

3500/22M 288055-01+146031-01 Dimensions of 5.75” x 4.6” x 1.5” (146 mm x 117 mm x 38 mm).

Weight:1 to 1.5 lbs (0.45 to 0.68 kg).

The 3500/22M 288055-01+146031-01 TDI module excels in capturing short-duration anomalies that can significantly impact machinery health. By monitoring high-speed signals, it provides a more accurate picture of turbine, compressor, pump, and other critical equipment performance.
