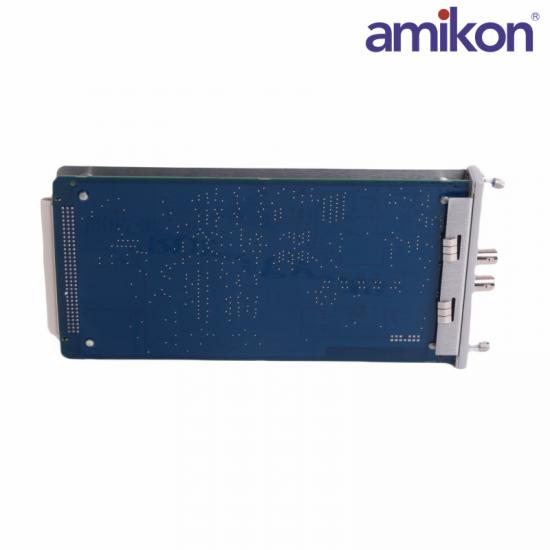

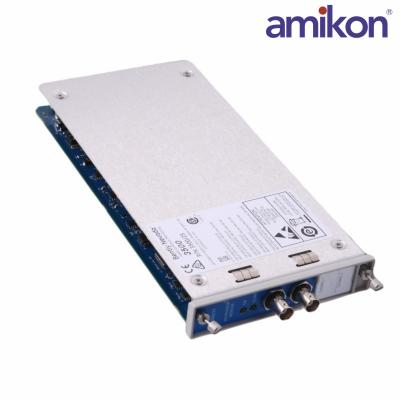

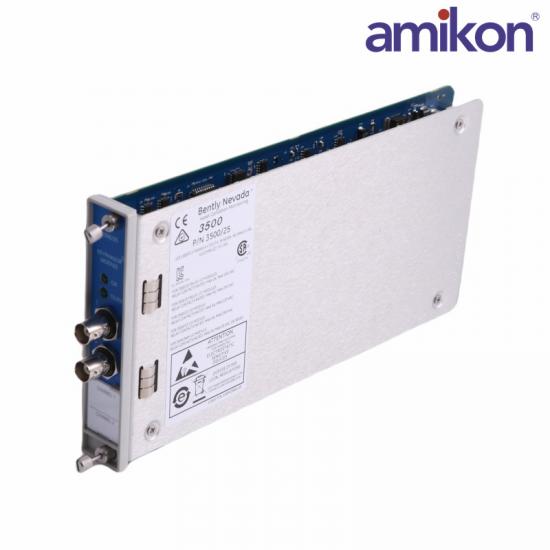

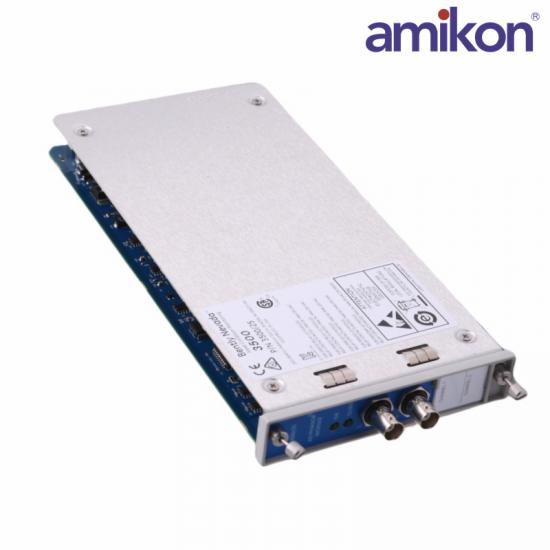

The Bently Nevada 3500/25-02-01-01 149369-01+125800-01 Enhanced Keyphasor Module is a part of the 3500 Series Machinery Protection and Monitoring System, specifically designed to enhance the monitoring of rotating machinery, particularly for speed measurement and Keyphasor signal processing.

The 3500/25-02-01-01 149369-01+125800-01 module is used to interface with various types of sensors, including proximity probes and tachometers.

Model Number: 3500/25-02-01-01 149369-01+125800-01

Type: Enhanced Keyphasor Module

Series: 3500 Series Machinery Protection and Monitoring System

Manufacturer: Bently Nevada

The 3500/25-02-01-01 149369-01+125800-01 module provides improved signal processing for Keyphasor sensors, allowing for highly accurate measurements of speed, position, and angular velocity in rotating machinery.

3500/25-02-01-01 149369-01+125800-01 Typically powered by 24 VDC, which is standard for industrial control systems and equipment, ensuring stable operation in demanding environments.

The 3500/25-02-01-01 149369-01+125800-01 Enhanced Keyphasor Module is designed to interface with a variety of sensors and other input devices, such as proximity probes and tachometers. It supports analog and digital signals, enabling flexible integration with machinery.

The 3500/25-02-01-01 149369-01+125800-01 module typically operates in a temperature range of -40°C to 70°C (-40°F to 158°F), making it robust enough for industrial environments with harsh temperature conditions.

Standard dimensions for 19-inch rack-mounted systems, typically around 5.75” x 4.6” x 1.5” (146 mm x 117 mm x 38 mm).

3500/25-02-01-01 149369-01+125800-01: 1-1.5 lbs (0.45 - 0.68 kg).

The 3500/25-02-01-01 149369-01+125800-01 module improves the accuracy of rotational speed measurements by processing the Keyphasor signals more effectively. This is especially important in monitoring high-speed machinery such as turbines, compressors, and pumps.

The 3500/25-02-01-01 149369-01+125800-01 Enhanced Keyphasor Module helps prevent failures by providing high-fidelity data on equipment speed, which can be used to detect conditions like shaft misalignment, bearing wear, or other mechanical issues that might not be obvious through other monitoring methods.
