Dimensions:4x21.8x29.2cm	Bus Termination:75, 150 Ohm resistor at both ends of electrical bus cable
Weight:0.5kg	Cable Distance:2000 - 7500 ft depending on the configured data rate
Series：Series 90-70	Memory:512 KB CMOS RAM
Module Width:Single Slot	Data Rates:153.5Kbaud standard /extended, 76.8Kbaud, or 38.4Kbaud
Maximum Number of Devices:30 devices / channel	Built-in ports:One (1) Bus Controller channel; One (1) Hand-Held Terminal port

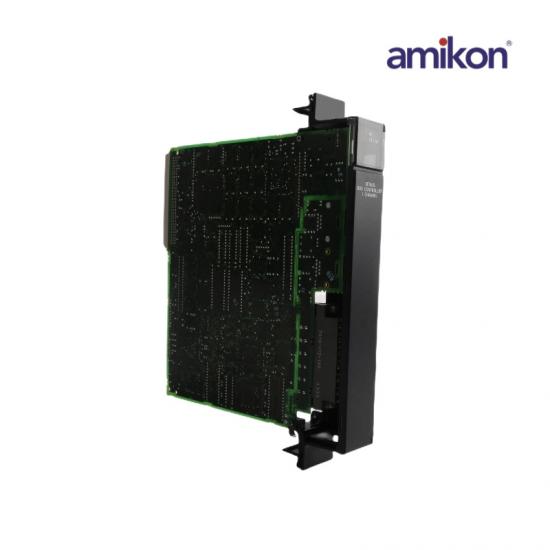

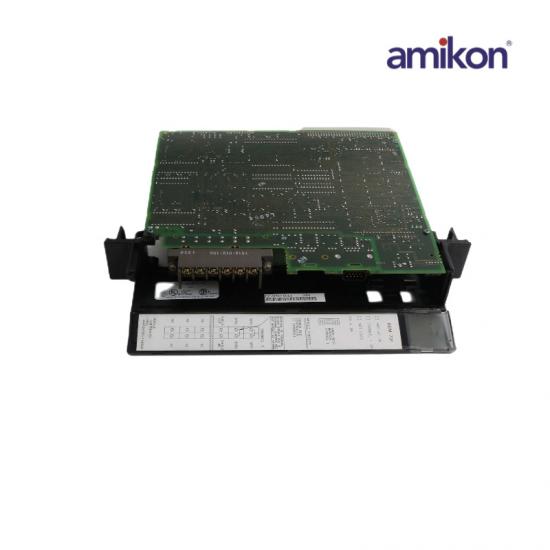

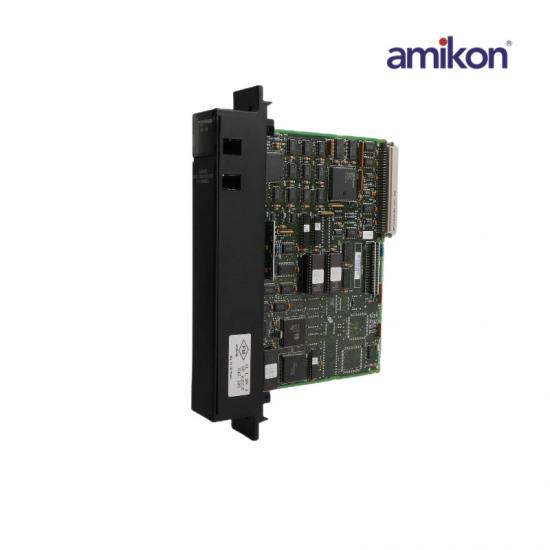

IC697BEM731 describe The IC697BEM731 is a Genius Bus Controller Module that is part of the GE Fanuc Series 90-70 family of Programmable Logic Controller (PLC). This module is primarily used to interface up to Thirty (30) devices and transfers data by passing a token among all the configured devices on the same bus. The IC697BEM731 has One (1) channel for interfacing with devices residing on the same bus, One (1) Hand-Held Monitor (HHM) port for downloading of configuration to the module using MS DOS or Windows programming software configurator function.

+86 18965423501 sales16@amikon.cn AMKPLC

Question: What is an IC697CMM742?
Answer: The IC697CMM742 is an Ethernet Interface from the GE Fanuc 90-70 Series.

Question: In Proficy what should I be doing?
Answer: You should make sure you select everything you see physically in front of you, in Proficy.

Question: How do I go into configuration?

Answer: Right click on slot #2, hit configure, give it an IP address, and a sub-net mask.

Question: What IP address should I give IC697CMM742?
Answer: Give it an IP address that is far above anything you have on your network so it doesn't get confused and when you ping it, you know you're only pinging this device.

Question: What should I do next?

Answer: Plug a local Ethernet cable into where it says 10 Base T. You should get a LAN LED blinking and that will let you know you're ready to ping this device.

Question: How do I ping it?

Answer: Go into Command Prompt, ask it to ping the address you put in, hit enter, and you will be looking for a reply.

Question: What else should I check on IC697CMM742?
Answer: You should check the AAUI port.
