Brand/Manufature:
GEProduct Origin:
USALead Time:
In StockCondition:
Brand NewCertificate:
Coo/Test report/Warranty letter|
Dimensions:4x21.8x29.2cm |
Current:3.1 Amperes |
|
Weight:0.74kg |
Elapsed time clock accuracy:0.01 % max |
|
Series：Series 90-70 |
Memory:512 KB CMOS RAM |
|
Voltage:5 Volts DC |
Boolean function time:0.4 microseconds |
|
Operating frequency:96 MHz |
Temperature:0-50 Degrees Celsius |
|

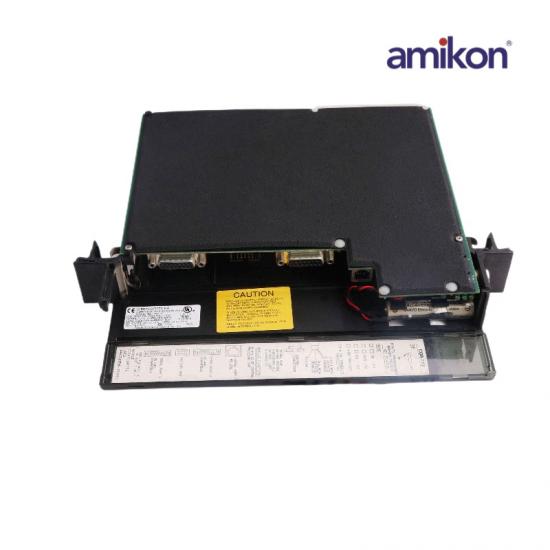

IC697CGR772 describe The IC697CGR772 module is a dual bus CPU module by GE Fanuc. It has a running frequency of 96 MHz. It can easily compute floating-point operations and handle different application demands. The CPU is equipped with an 80486 DX4 microprocessor that supports up to 8000 analog I/O. It can compute a single boolean function in 0.4 microseconds. The IC697CGR772 module uses a battery-backed CMOS RAM with a capacity of 512 KB. The replaceable lithium-ion battery known as the IC697ACC701 battery in the module is also used to maintain the date and time of the module. The module is fully compatible with the IC660 and IC661 devices by GE Fanuc. The CPU features a manual switching feature that enables it to change between the communication modules. The front section of the module is equipped with 7 LED indicators for different status and event updates. |
|
+86 18965423501
sales16@amikon.cn
AMKPLC
Question: What is an IC697CMM742?
Answer: The IC697CMM742 is an Ethernet Interface from the GE Fanuc 90-70 Series.
Question: In Proficy what should I be doing?
Answer: You should make sure you select everything you see physically in front of you, in Proficy.
Question: How do I go into configuration?
Answer: Right click on slot #2, hit configure, give it an IP address, and a sub-net mask.
Question: What IP address should I give IC697CMM742?
Answer: Give it an IP address that is far above anything you have on your network so it doesn't get confused and when you ping it, you know you're only pinging this device.
Question: What should I do next?
Answer: Plug a local Ethernet cable into where it says 10 Base T. You should get a LAN LED blinking and that will let you know you're ready to ping this device.
Question: How do I ping it?
Answer: Go into Command Prompt, ask it to ping the address you put in, hit enter, and you will be looking for a reply.
Question: What else should I check on IC697CMM742?
Answer: You should check the AAUI port.
