Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Model |
200355-10-00-00 |
|
Type |
Sensor Proximity |
|
Sensitivity |
100 mV/g ±5% (10.2 mV/m/s² ±5%) |
|
Frequency Range (±3 dB) |
12-600,000 cpm (0.2-10,000 Hz) |
|
Measurement Range |
± 50 g |
|
Transverse Sensitivity |
≤ 5% |
|
Amplitude Linearity |
± 1% |
|
Output Bias Voltage |
8 to 12 VDC |
|
Excitation Voltage |
18 to 28 VDC |
|
Constant Current Excitation |
2 to 20 mA |
|
Electrical Isolation (Case) |
> 108 ohms |
|
Mounting Thread |
1/4-28 Female |
|
Mounting Torque (Maximum) |
2 to 5 ft-lb (2.7 to 6.8 N-m) |
|
Sensing Element |
Ceramic |
|
Sensing Geometry |
Shear |
|
Housing Material |
Stainless Steel |
|
Sealing |
Welded Hermetic |
|
Electrical Connector |
2-Pin Mil-C-5015 |

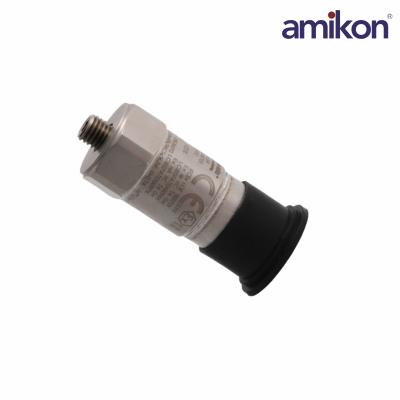

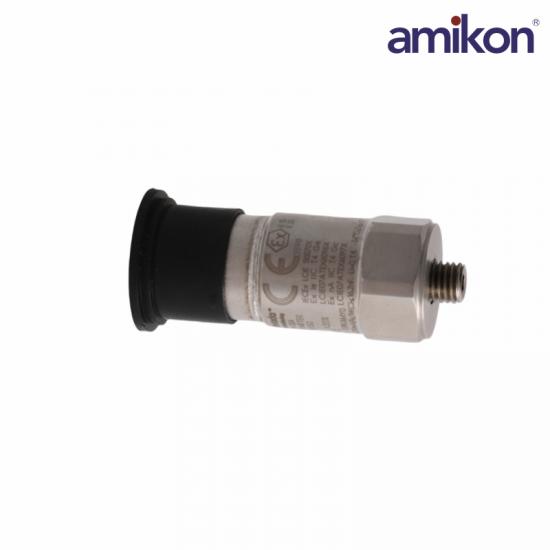

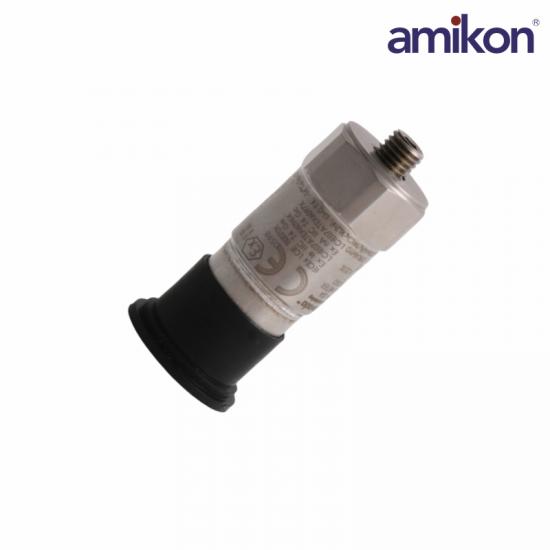

The 200350 and 200355 Accelerometers are general purpose, case-mounted seismic transducers designed for use with Trendmaster Pro Constant Current Direct Input Card, part number 149811-02 and the Seismic Direct Input Card, part number 164746-01.
The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options.
The 200350 and 200355 Accelerometers contain a piezoelectric sensing device, which generates charge when subjected to vibration. This charge is then converted electronically to a differential voltage signal, which is proportional to the acceleration that is parallel to the sensitive axis of the transducer.
