Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooClaim Your Exclusive Savings – Get in Touch with Sales Manager Lisa Lin Now
: +86-18965423501
: sales7@amikon.cn
:AMKPLC
|
Part Number |
200355-11-00-00 |
|
Mounting Stud ( 11) |
M6x1 Adhesive Stud Mount |
|
Tolerance ( 00) |
100 mV/g ± 5% (10.2 mV/(m/s²) ±5%) |
|
Approvals ( 00) |
No Approvals |
|
Sensitivity |
100 mV/g ± 5% (10.2 mV/(m/s²) ± 5%) |
|
Frequency Range |
12～600,000 cpm (0.2～10,000 Hz) |
|
Measurement Range |
±50 g |
|
Operating Temperature |
-54 ℃～+121 ℃ (-65 ℉～+250 ℉) |

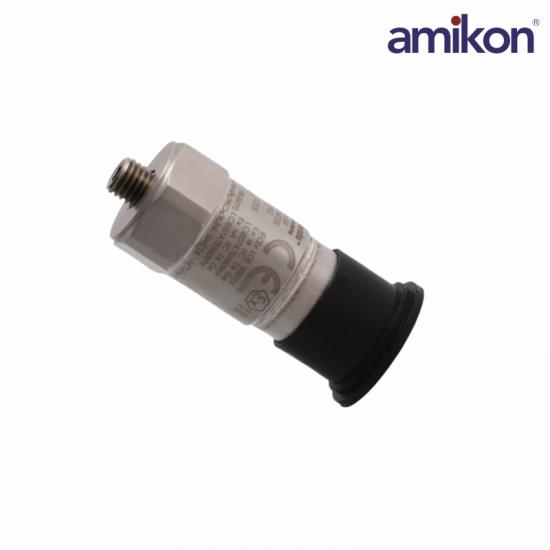

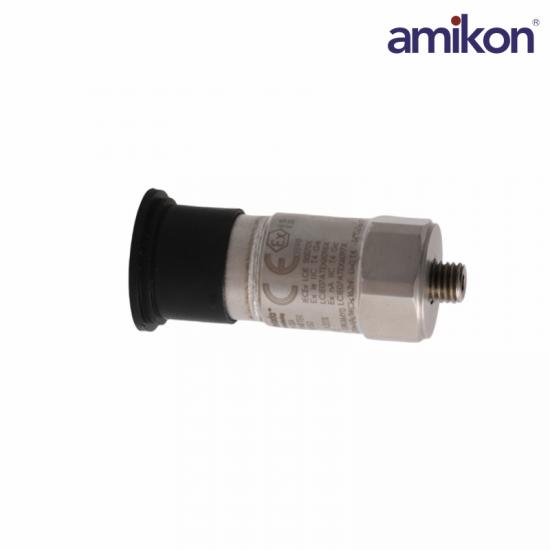

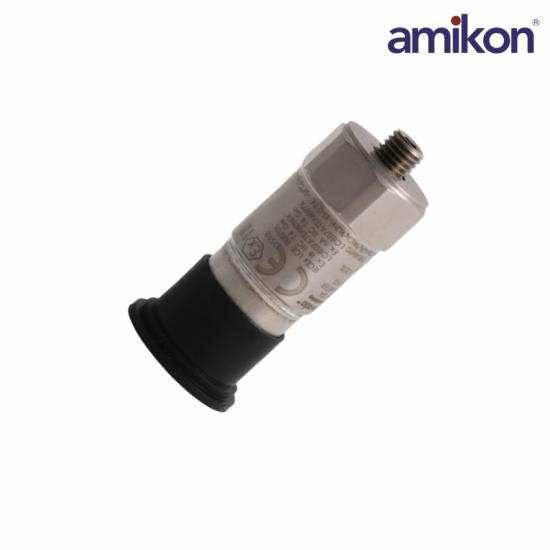

The 200350 and 200355 Accelerometers are containedwithin a hermetically sealed, stainless steel case. Thedesign provides an extremely rugged transducer, wellsuited for harsh industrial environments. Eachtransducer's top mounted, 2-pin connector (MIL-C-5015) allows for easy installation and removal of the interconnecting signal cable. A 1-28 threaded hole onthe bottom of the casing accommodates multiplemounting options.
The 200350 and 200355 Accelerometers contain apiezoelectric sensing device, which generates chargewhen subjected to vibration. This charge is thenconverted electronically to a differential voltage signal,which is proportional to the acceleration that is parallelto the sensitive axis of the transducer.
Frequently Asked Questions
What is the Bently Nevada 200355?
It is a general-purpose, case-mounted piezoelectric accelerometer used to measure casing, housing, or structural vibration on rotating machinery.
What does the "11" in the suffix 200355-11-00-00 mean?
It specifies the mounting option, typically a 1/4-28 UNF threaded stud for securing the sensor to the machine housing.
What is the correct mounting torque for the 200355-11-00-00?
It should be torqued precisely to 4.5 N·m (40 in-lb). Over-tightening can crack the internal crystal; under-tightening causes signal loss.
What is the full-scale measurement range?
It can measure dynamic acceleration levels up to ±50 g peak.
How does the sensor receive power?
It requires an internal charge amplifier circuit powered by a constant current DC bias (2 to 10 mA) supplied by the monitor rack.
Product Applications
Power Industry: Used for vibration monitoring of bearing housings and casings in large power generation equipment such as steam turbines, generators, and hydro turbines.
Oil and Gas Industry: Used for online condition monitoring of critical fluid machinery such as compressors, large fans, and pumps.
Chemical Industry: Adaptable to harsh, corrosive, and explosion-proof environments in chemical plants.
Metallurgy and Mining: Used for daily vibration intensity and fault early warning in rolling mills, large motors, and heavy-duty gearboxes.
