Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Brand Name |
Bently Nevada |
|
Model Number |

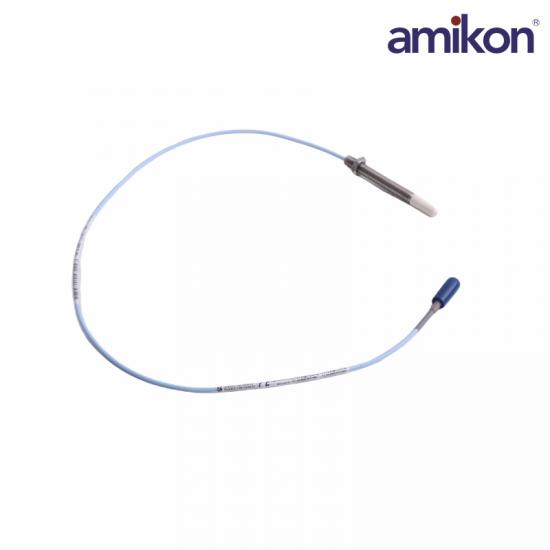

330903-00-08-10-02-05/CN |
|
Type |
Transducer System |
|
Output Resistance |
50 Ω |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Extension Cable DC Resistance |
Center conductor: 0.220 Ω/m (0.067 Ω/ft) |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Connector Material |
Gold-plated brass |
|
Extension Cable Material |
75 Ω coaxial, fluoroethylene propylene (FEP) insulated |
|
Proximitor Sensor Material |
A380 aluminum |
|
System Length |
5 or 7 meters including extension cable |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Probe Weight |
Approximately 14 to 150 g (0.5 to 5.3 oz) |
|
Extension Cable Weight |
45 g/m (0.5 oz/ft) |
|
Armored Extension Cable Weight |
64 g/m (0.7 oz/ft) |
|
Proximitor Sensor Weight |
255 g (9 oz) |
The 3300 XL NSv Transducer System is primarily designed for situations where standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems are restricted due to counter bore, sideview, or rearview limitations. It is also suitable for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The main applications on fluid-filmed bearing machines, where a small shaft or reduced side-view is present, include:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero-speed measurements
Phase reference (Keyphasor signals)
