Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Brand:Bently Nevada |
|

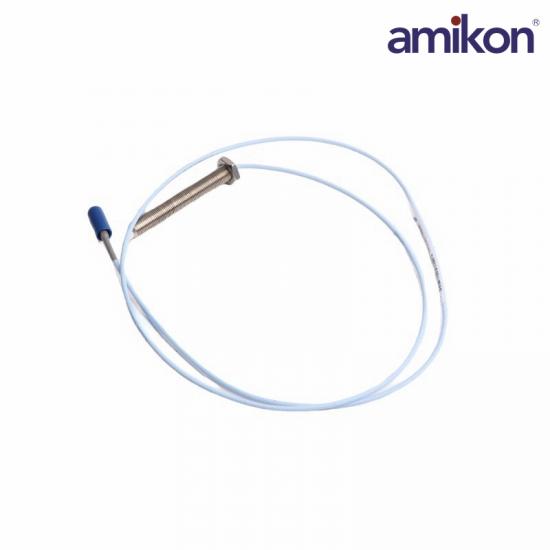

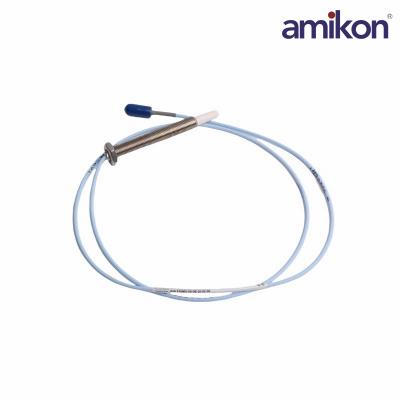

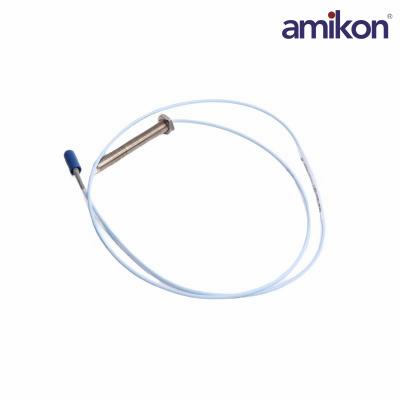

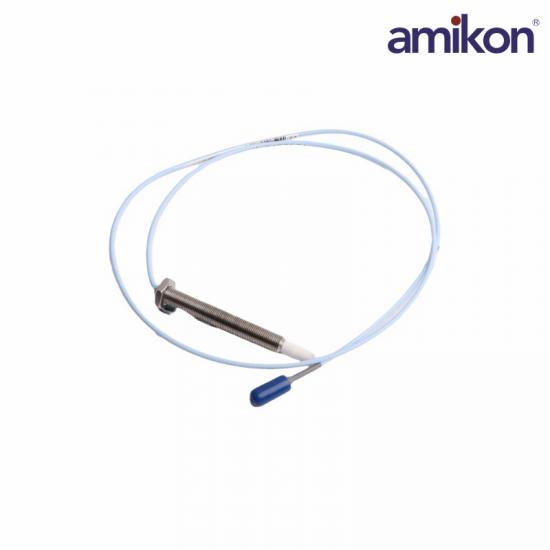

Model:330905-00-24-10-02-05/CN |
|
Type:Transducer System |
|
Extension Cable DC Resistance: |
|
Center Conductor: 0.220 Ω/m (0.067 Ω/ft) |
|
Shield: 0.066 Ω/m (0.020 Ω/ft) |
|
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical |
|
Recommended Gap Setting: 1.0 mm (40 mils) |
|
Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils) |
|
Proximitor Sensor Material: A380 aluminum |
|
System Length: 5 or 7 meters including extension cable |
|
Connector Material: Gold-plated brass |
|
Recommended Torque: Finger tight |
|
Maximum Torque: 0.56 N•m (5 in•lb) |
|
Probe Tip Material: Polyphenylene sulfide (PPS) |
|
Probe Case Material: AISI 304 stainless steel (SST) |
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero-speed measurements
Phase reference (Keyphasor signals)
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.
