Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Specification |
Details |
|
Brand |
Bently Nevada |
|
Model |

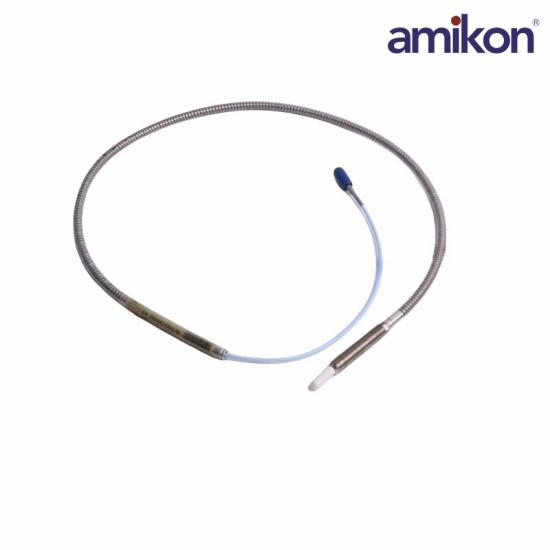

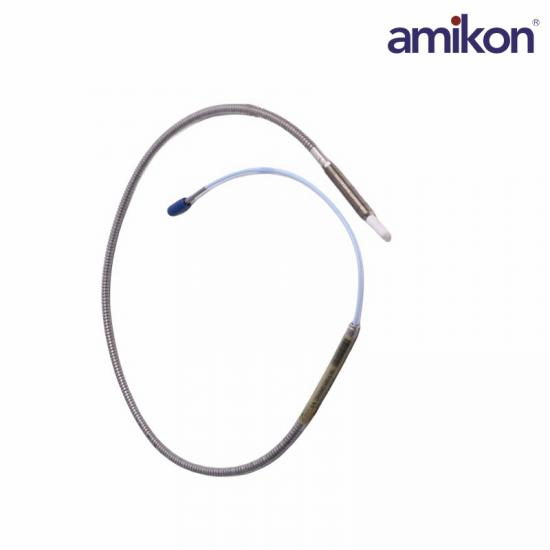

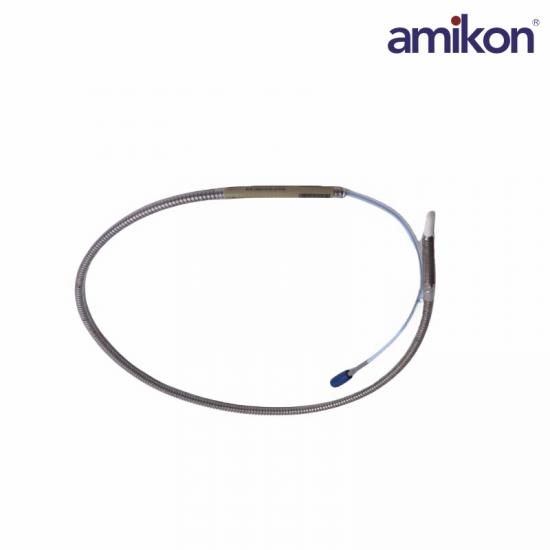

330910-00-10-10-02-05/CN |
|
Type |
Sensor Proximity Probe Cable |
|
Output Resistance |
50 Ω |
|
Extension Cable DC Resistance |
Center Conductor: 0.220 Ω/m (0.067 Ω/ft) |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Proximitor Sensor Material |
A380 aluminum |
|
System Length |
5 or 7 meters including extension cable |
|
Recommended Torque |
Finger tight |
|
Maximum Torque |
0.56 N•m (5 in•lb) |
|
Operating and Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
The 3300 XL NSv Proximitor Sensor has similar features to those found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows the user to mount it in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL NSv Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents nearby high-frequency radio signals from adversely affecting the transducer system. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.
