The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearvie wrestrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

Frequently Asked Questions

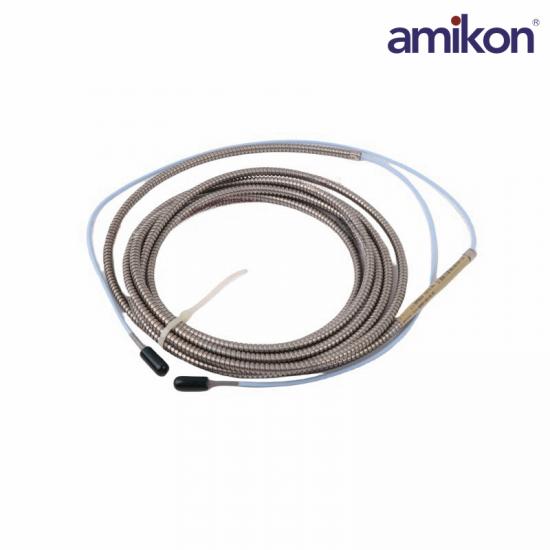

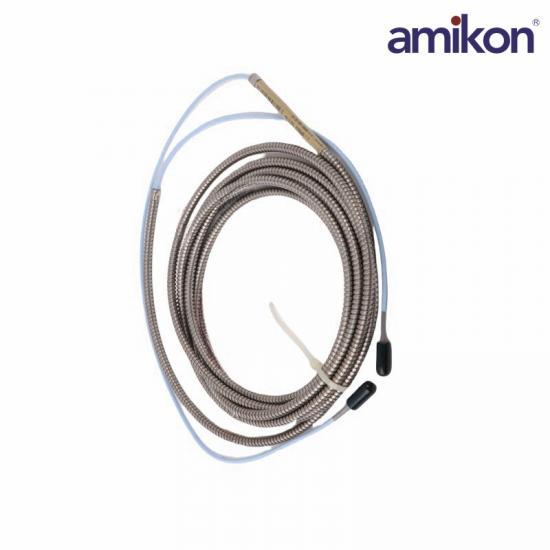

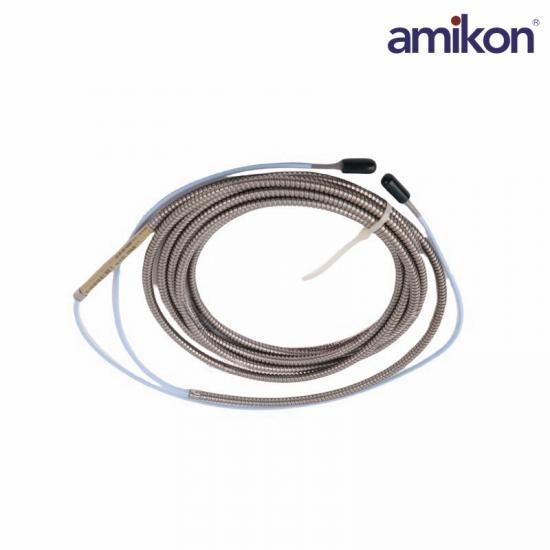

Can I use this 330930 cable with a standard Bently Nevada 8mm probe?

No. The 330930 cable is tuned exclusively for the 3300 XL NSv (Narrow Side View) series. Mixing it with 5mm, 8mm, or 11mm probes will cause severe calibration distortion.

What happens if I connect this 4.0m cable to a 9.0m Proximitor sensor?

The system will fail. A 4.0m cable must only be paired with a 1.0m probe (for a 5m Proximitor) or a 3.0m probe (for a 7m Proximitor). Mismatched lengths destroy the linear voltage scale.

What type of target material is this cable/system calibrated for out of the box?

It is factory-calibrated for AISI 4140 electric oven vacuum-melted steel.

What is the maximum operating temperature for this extension cable?

The cable is rated for an operational temperature range of -51 °C to +177 °C (-60 °F to +350 °F).

Product Applications

Oil & Gas: Monitoring of compressors and pumps in refineries, natural gas gathering and transmission stations, and long-distance pipelines.

Petrochemical & Chemical: Monitoring of various core rotating equipment in chemical plants involving processes involving flammable and explosive gases.

Power Generation: Small steam turbines and auxiliary systems (such as feedwater pumps and blowers) in thermal power plants and hydroelectric units.

Metallurgy & Steel: Precision mechanical displacement monitoring inside the bearing housings of large blast furnace blowers and rolling mills.

Industrial Refrigeration: Large-scale industrial refrigeration compressors used in chemical plants or cold chain systems.
