The primary uses for the 3300 XL NSv Transducer System arefor areas where counter bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and3300 XL 5 and 8 mm Transducer Systems. It is also ideal forsmall target applications, such as measuring radial vibrationon shafts smaller than 51 mm (2 in) or axial position on flattargets smaller than 15 mm (0.6 in). It is primarily used in thefollowing applications on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:

Radial vibration and radial position measurements

Axial (thrust) position measurements

Tachometer and zero speed measurements

Phase reference (Keyphasor signals)

The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System. Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring system with 3300 XL NSv ProximitorSensor. Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.

Frequently Asked Questions

Q : What exactly does the part number 330930-065-01-05 represent?

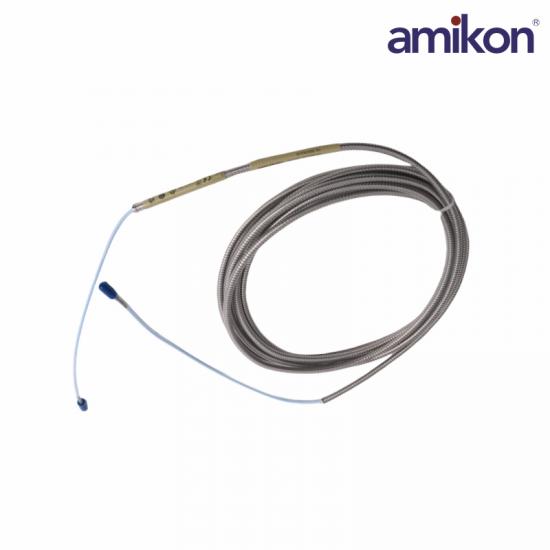

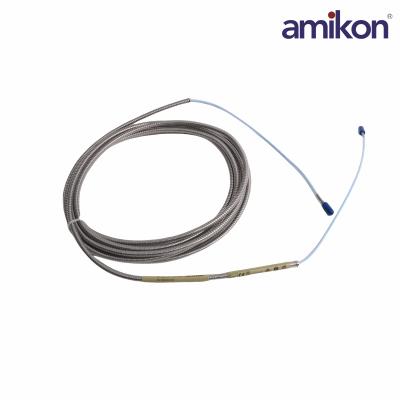

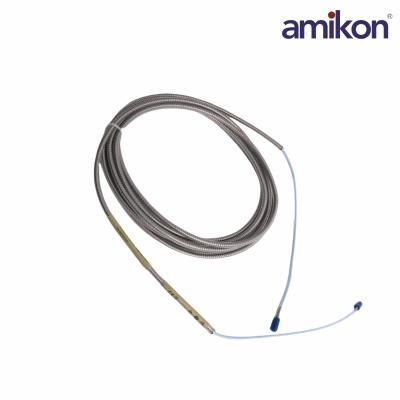

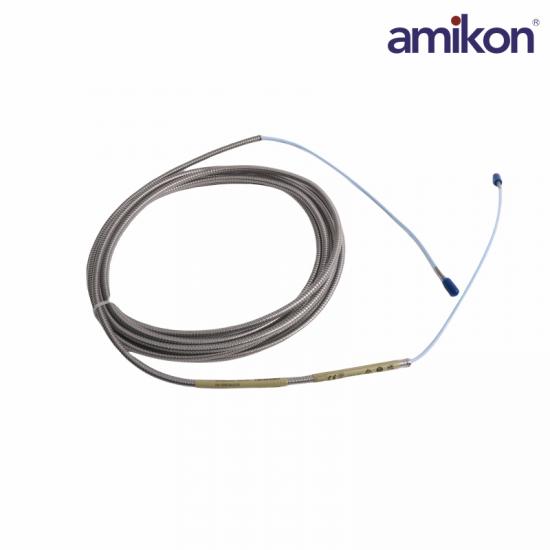

A : It is a Bently Nevada 3300 XL NSv Proximity Transducer System armored extension cable.

Q : What does the "-065" option specify?

A : It indicates that the cable has a total length of 6.5 meters (approximately 21.3 feet).

Q : What is the rated operating temperature range?

A : It can operate continuously in temperatures ranging from -51°C to +177°C (-60°F to +351°F).

Q : What is the minimum bend radius for installation?

A : The minimum bend radius for the armored version is 25.4 mm (1.0 inch).

Product Applications

Oil and Gas: Monitoring the operational status of large compressor units in oil refining and natural gas transmission pipelines.

Chemical and Petrochemical: Early warning of mechanical failures in critical process gas compressors and various high-risk medium transfer pumps.

Power Industry: Asset status management (ACM) for power plant turbines, auxiliary fans, coal mills, and water pumps.

Iron and Metallurgy: Vibration protection for blast furnace blowers, large exhaust fans, and critical equipment in power plants.
