Brand/Manufature:
Bently NevadaProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooManufacturer: Bently Nevada

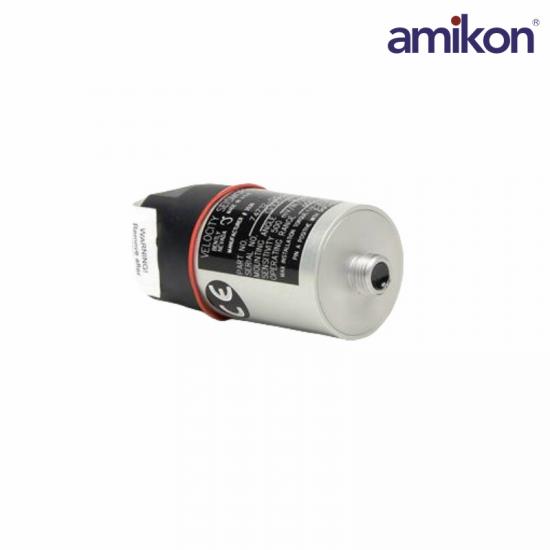

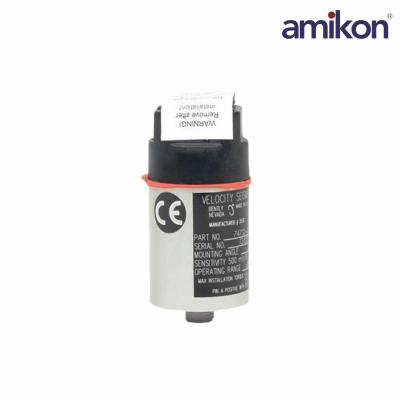

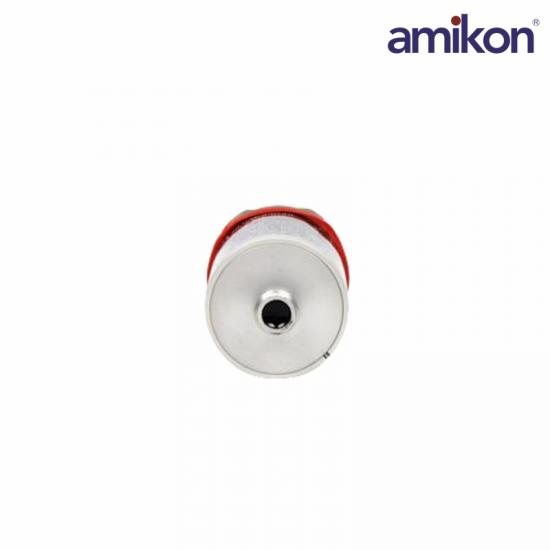

Part number: 74712-06-10-02-00
Product type :VIBRATION PROBE
Dynamic Operating Range: 2.54 mm (0.100 in) peak to peak maximum displacement.
Velocity Range: 25 mm/s (1 in/s) at +22°C of casing vibration at 100 Hz with a 10 kΩ load.
Coil Resistance: 1.25 kΩ ±5%.
Locked Coil Inductance: 125 mH, typical.
Case and Adapter Material: Anodized aluminum A204.
Gasket Material: 9200: Neoprene, 74712: Silicone.
Height: 102 mm (4 in) typical (depending on connector option).
Diameter: 41 mm (1.6 in) typical.
Weight (9200): 300 grams (10.5 ounces) typical.
Weight (74712): 480 grams (17 ounces) typical.
Bently Nevada Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.
The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.
Moving-coil transducers are less sensitive to impact or impulsive excitation than solid-state velocity transducers, which are inherently accelerometers with embedded integration electronics. Moving-coil transducers are less sensitive to impact or impulsive excitation and can represent a good choice for certain applications. Because they don’t require external power, they are convenient for portable measurement applications.
