The system provides an output voltage directly proportional to the distance betweenthe probe tip and the observed conductive surface. It is capable of both static(position) and dynamic (vibration) measurements, and is primarily used for vibrationand position measurement applications on fluid-film bearing machines, as well asKeyphasor@ and speed measurement applications2.

The 3300 XL 8 mm system represents our most advanced performance in an eddycurrent proximity transducer system. The standard 3300 XL 8 mm 5 metre systemis also 100% compliant with the American Petroleum Institute's (API) 670 Standard(4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level ofperformance while allowing complete interchangeability of probe, extension cable,and Proximitor@ Sensor without the need for individual component matching orbench calibration.

Frequently Asked Questions

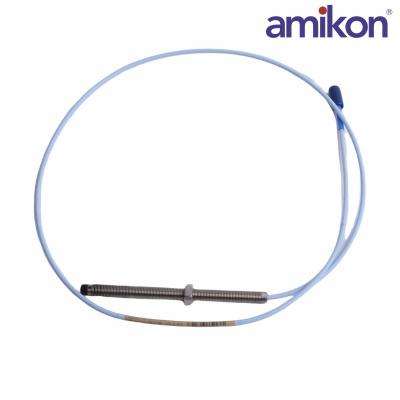

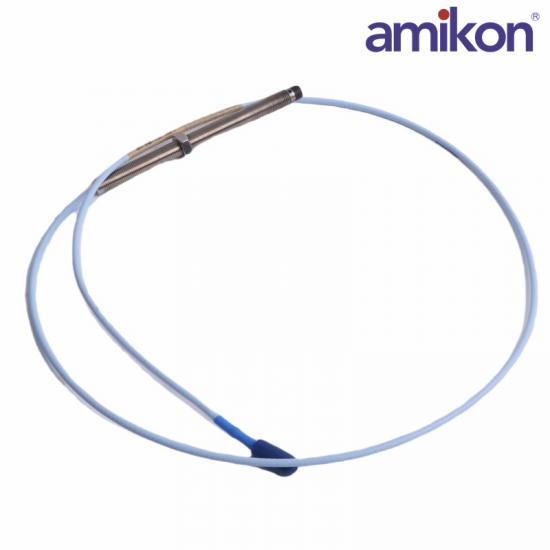

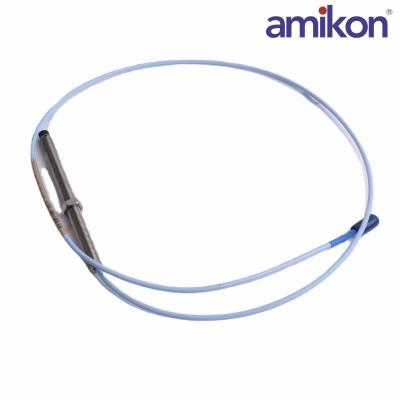

What exactly is the Bently Nevada 330101-00-24-10-12-CN?

It is a 3300 XL series 8mm eddy-current proximity probe used to measure shaft vibration, position, and speed in critical rotating machinery.

What does the "330101" prefix indicat

e?It specifies a standard 3300 XL 8mm probe with a 3/8-24 UNF English thread without an armored cable sleeve.

What is the standard linear measuring range of an 8mm probe?

The linear range is 2.0 mm (80 mils), typically starting at a 0.25 mm (10 mils) gap from the target face.

What is the standard Scale Factor (ASF) for this system?

The standard average scale factor is 7.87 V/mm (200 mV/mil)

Product Applications

Power Industry: Steam turbines, gas turbines, large generators, and hydroelectric generator sets for thermal/nuclear power plants.

Petroleum and Chemical Industry: Large centrifugal compressors, reciprocating compressors, hydrocracking pumps, and high-pressure pump sets.

Metallurgy and Iron & Steel: Blast furnace blowers, high-speed wire rod mill shafts, and large exhaust fans.

Mining and Cement: Large ball mills, crushers, and conveyor belt driven spindles.
